Technical Specifications & Installation Resources

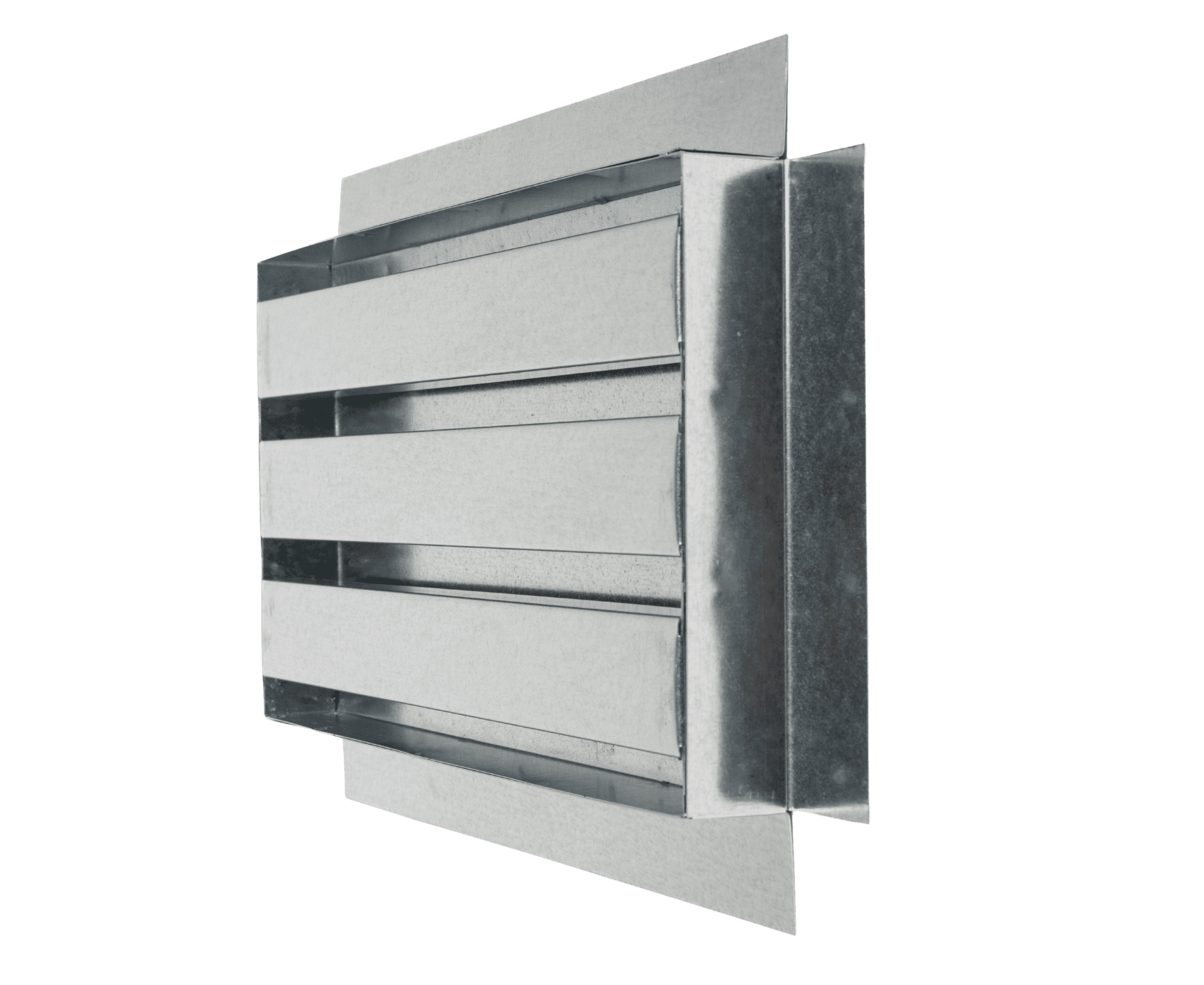

Foundation Vents
Get everything you need to install, specify, or approve the Ember-Resistant Foundation Vent. Below you’ll find data tables, downloadable spec sheets by size, Instant CAD/Revit Files, installation videos, compliance certifications, and clarification on common misconceptions.

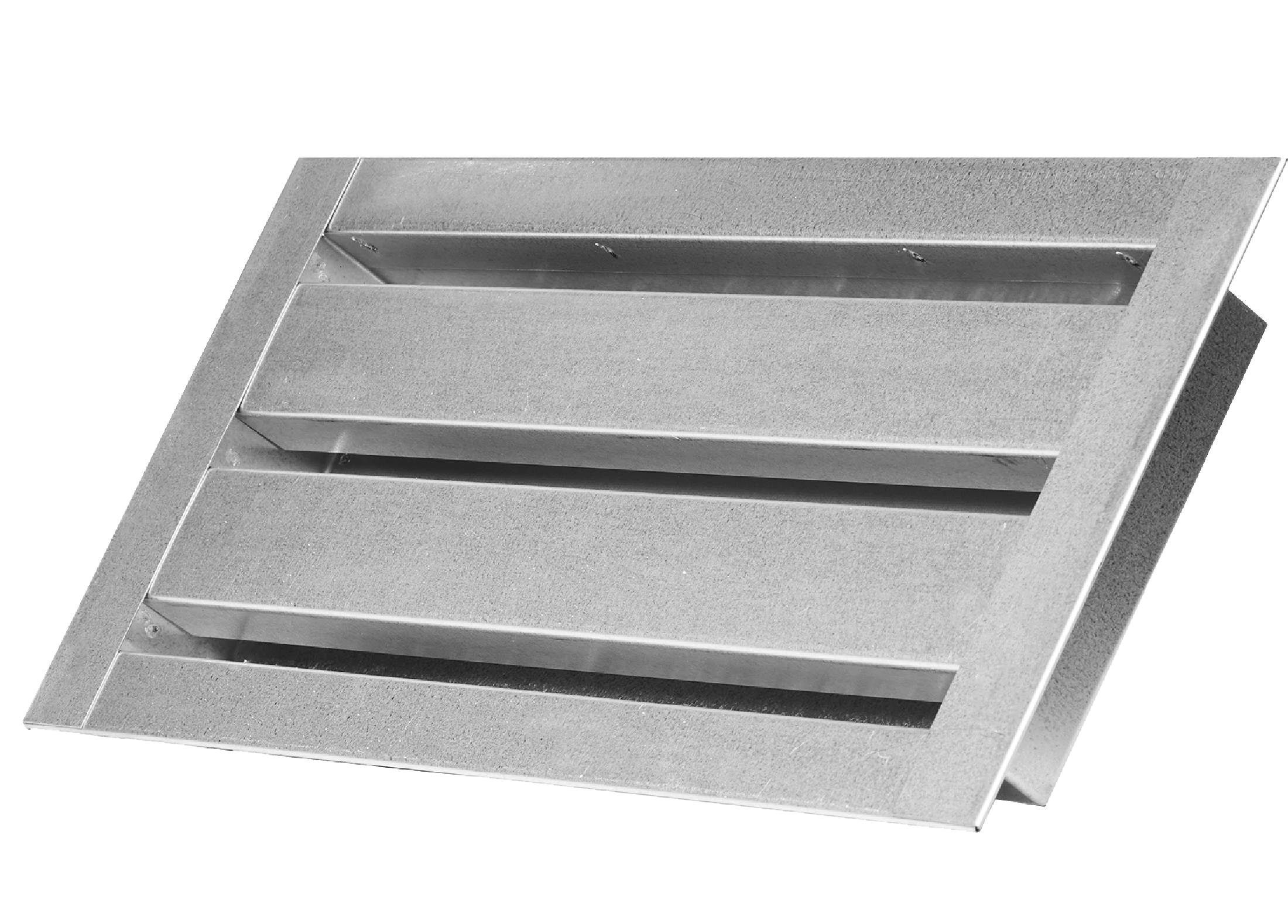

Technical Specifications by Size
Compare vent models by size, airflow, material, and compliance ratings to find the right fit for your project.
| Size (W x L) | Model # | Flange | NFVA (Airflow) | Spec Sheets |
|---|---|---|---|---|
| 14” x 5.5” | FV2011-FF | Flange Front | 23.4 sq in | Download Spec Sheet |
| FV2011-PG | Stucco/Plaster | 23.4 sq in | Download Spec Sheet | |
| FV2011-FB | Flange Back | 23.4 sq in | Download Spec Sheet | |
| 14” x 8” | FV2021-FF | Flange Front | 38 sq in | Download Spec Sheet |
| FV2021-PG | Stucco/Plaster | 38 sq in | Download Spec Sheet | |
| FV2021-FB | Flange Back | 38 sq in | Download Spec Sheet | |
| 16” x 4” | FV16x4-FF | Flange Front | 22.5 sq in | Please Contact for Specs. |
| FV16x4-PG | Stucco/Plaster | 22.5 sq in | Please Contact for Specs. | |
| FV16x4-FB | Flange Back | 22.5 sq in | Please Contact for Specs. | |
| 16” x 6” | FV16x6-FF | Flange Front | 34 sq in | Please Contact for Specs. |
| FV16x6-PG | Stucco/Plaster | 34 sq in | Please Contact for Specs. | |
| FV16x6-FB | Flange Back | 34 sq in | Please Contact for Specs. | |
| 16″ x 8″ | FV16x8-FF | Flange Front | 45 sq in | Please Contact for Specs. |
| FV16x8-PG | Stucco/Plaster | 45 sq in | Please Contact for Specs. | |
| FV16x8-FB | Flange Back | 45 sq in | Please Contact for Specs. |
CAD and Revit Drawings
Looking to specify BrandGuard Vents into your next project? Access all of our Revit BIM and CAD file downloads instantly! Please complete the form below to access materials.
Certifications
Foundation Vent CAL Fire Certification
Installation Guides
Installing BrandGuard Vents is simple and efficient.
Retrofitting or starting fresh? BrandGuard Ember-Resistant Vents are made to smoothly into both existing homes and new construction projects.
Foundation Vent Installation: New Construction
For new construction projects, our Ember-Resistant Foundation Vents are specified just like standard foundation vents – but with the added benefit of meeting Wildland-Urban (WUI) requirements for enhanced fire protection.

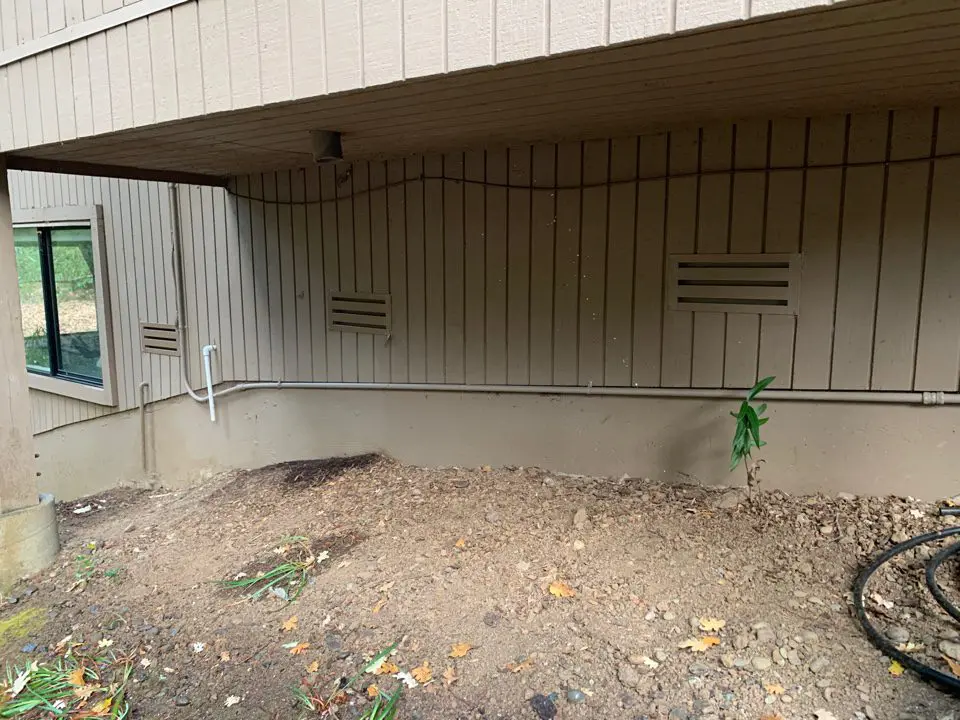

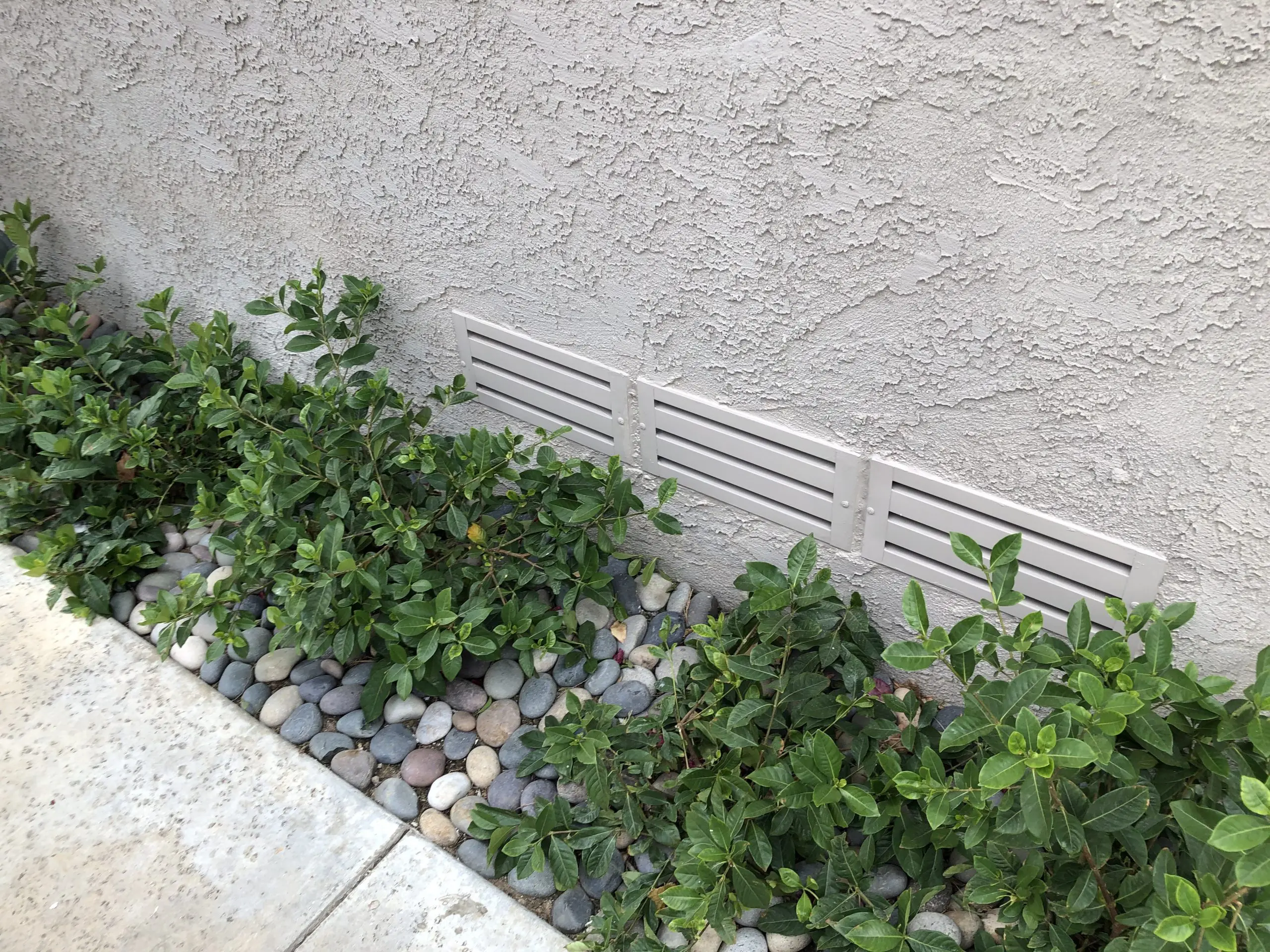

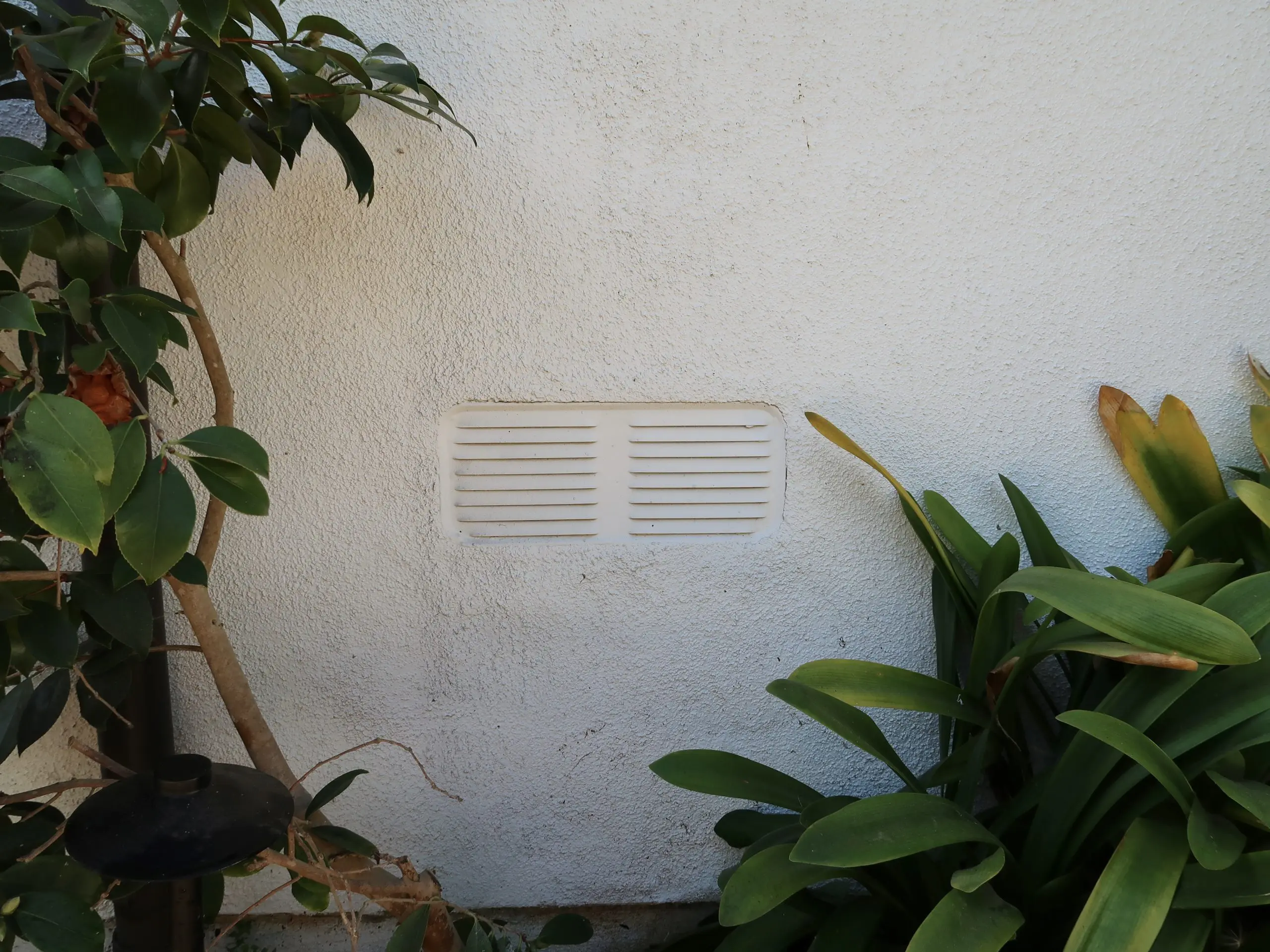

Retrofitting Foundation Vents with BrandGuard
To retrofit, simply insert one of BrandGuard’s standard fire- and ember-resistant foundation vents into the existing opening. Secure the vent using appropriate screw fasteners and exterior-grade clear caulking rated for a minimum 20-year warranty.
Step 1: Measure and Prepare
Measure the existing vent opening (WxH) and ensure there’s at least 1½” of depth available. Order the appropriate BrandGuard foundation or crawl space vents. Prime and paint the baffle side of the vent using metal primer and exterior grade paint. Please note we offer custom sizes as well.
Step 2: Cut and Seal
Remove the old vent and cut the opening as needed. Apply exterior-approved clear caulking behind and around the flange to ensure a secure, weather-resistant seal.
Step 3: Install and Secure
Insert the BrandGuard Vent with vertical baffles facing outward and mesh facing inward. Level the vent, then fasten with galvanized self-drilling screws. Finish with a final bead of caulking around the outer edge for a clean, sealed fit.
More information
Frequently Asked Questions
The essential questions, answered.
How do Brandguard Vents™ work?
Home hardening is a critical factor to improve the survivability of structures during wildfires. All homes have vulnerable “point of entry” that must be sealed to avoid hot embers and fire from entering the structure. Home ventilation is essential from an energy saving point of view, however in case of a fire nearby, there is a risk of hot embers finding their way into your attic, basement, garage, etc. BrandGuard has patented a unique system to keep embers from entering your house. Our design consists of multiple line of defense:
- A baffle design which allows air to move freely, but traps embers
- BrandGuard propriety intumescent material, which expand only if high heat and extreme flames are reaching the vents
- Non combustible, metal vents which resist heat and flames
How are Brandguard Vents™ different than standard vents?
BrandGuard Vents resists the intrusion of flame and embers into your attic through the building’s vents, thus protecting your home from dangerous flying embers created by wildfires.
Standard Vents do not offer any protection against flying embers and fire.
Why are baffles better for protection?
Baffles have long been used in commercial kitchens as a way to prevent stovetop fires. We have redesigned them to help keep flames, dangerous burning embers, and radiant heat out of your home during a wildfire. Baffles provide immediate protection during a wildfire from the very first second of exposure.
Another reason baffles are better is because they provide protection from driving rain, snow, and rodents. Our vents have passed stringent driving rain tests in Hurricane labs in Florida keep heavy driving rain out at even 140mph! Rodents are unable to chew or squeeze through our vents like they do with regular mesh vents, making them an excellent option for pest control!
What is an intumescent material?
BrandGuard Vents are equipped with a propriety material (intumescent) which expands in case of fire. The thermally activated strip expands up to 30 times its original thickness, sealing off the vent completely. This is an extreme measure to make sure that fire doesn’t penetrate the home.
Are custom vents/products available?
Yes, BrandGuard Vents will work with you and your needs to create a custom fire prevention vent for your project.
How are the vents installed?
BrandGuard Vents are installed like any traditional vent with the same footprint. Our line of retrofit fire Vents can be easily inserted over existing vents without any damage to the structure. They are held in place by applying appropriate screw fasteners. They can also be installed from inside the attic. Please see our installation instructions.
