Technical Specifications & Installation Resources

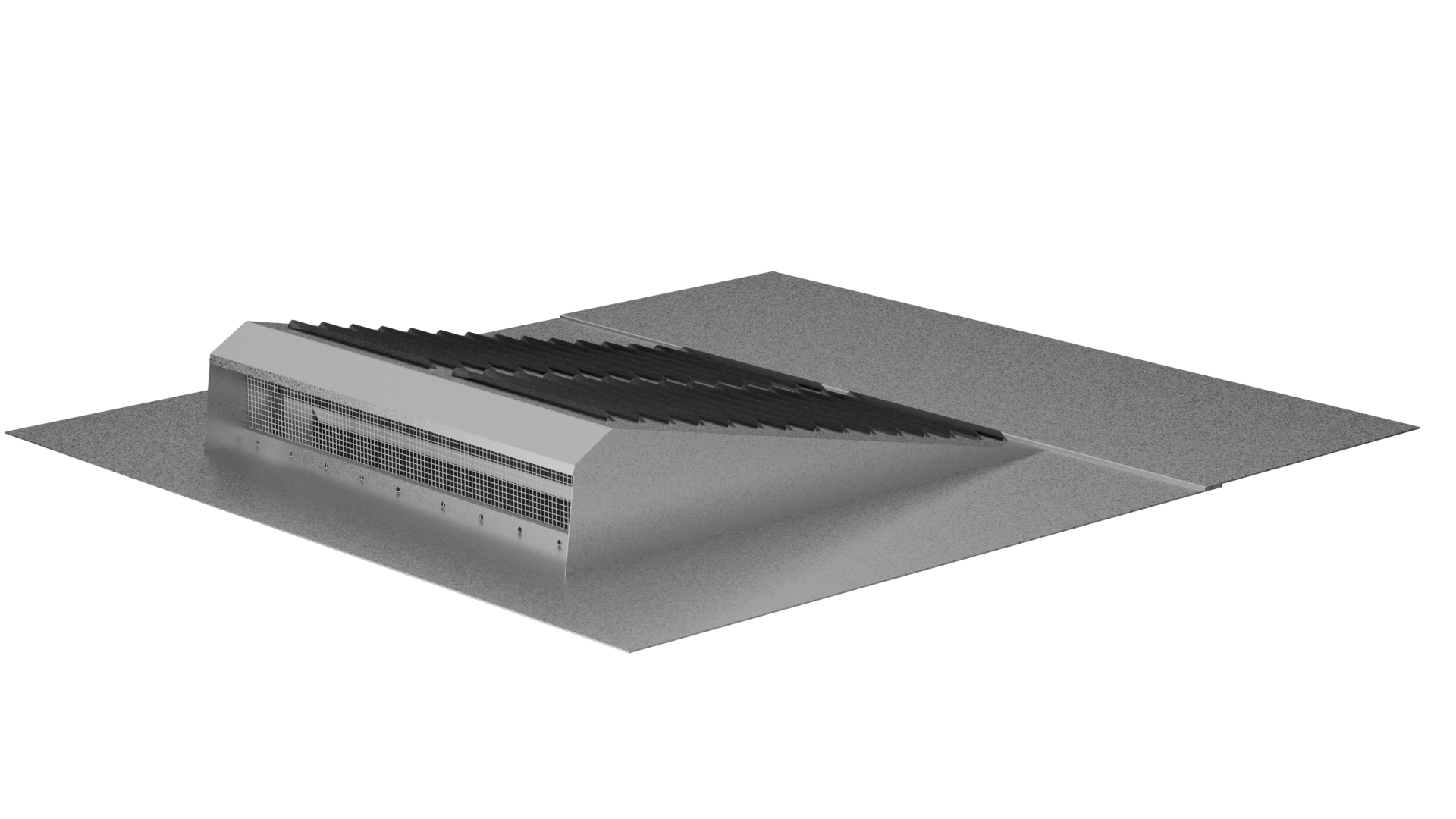

Low Profile Glider Series
Get everything you need to specify and install BrandGuard’s Flame-Resistant Low-Profile Roof Vents. Below you’ll find data tables, downloadable spec sheets by size, and installation resources. For design professionals, CAD and REVIT files are available for easy download.
Installation Guides
Installing BrandGuard Vents is simple and efficient.
Retrofitting or starting fresh? BrandGuard Ember-Resistant Vents are made to integrated seamlessly into both existing homes and new construction projects.
Low Profile Glider Vent Installation: New Construction
For new construction projects, our Ember-Resistant Low-Profile Glider Vents are specified just like standard roof vents – but with the added benefit of meeting Wildland-Urban (WUI) requirements for enhanced wildfire protection.

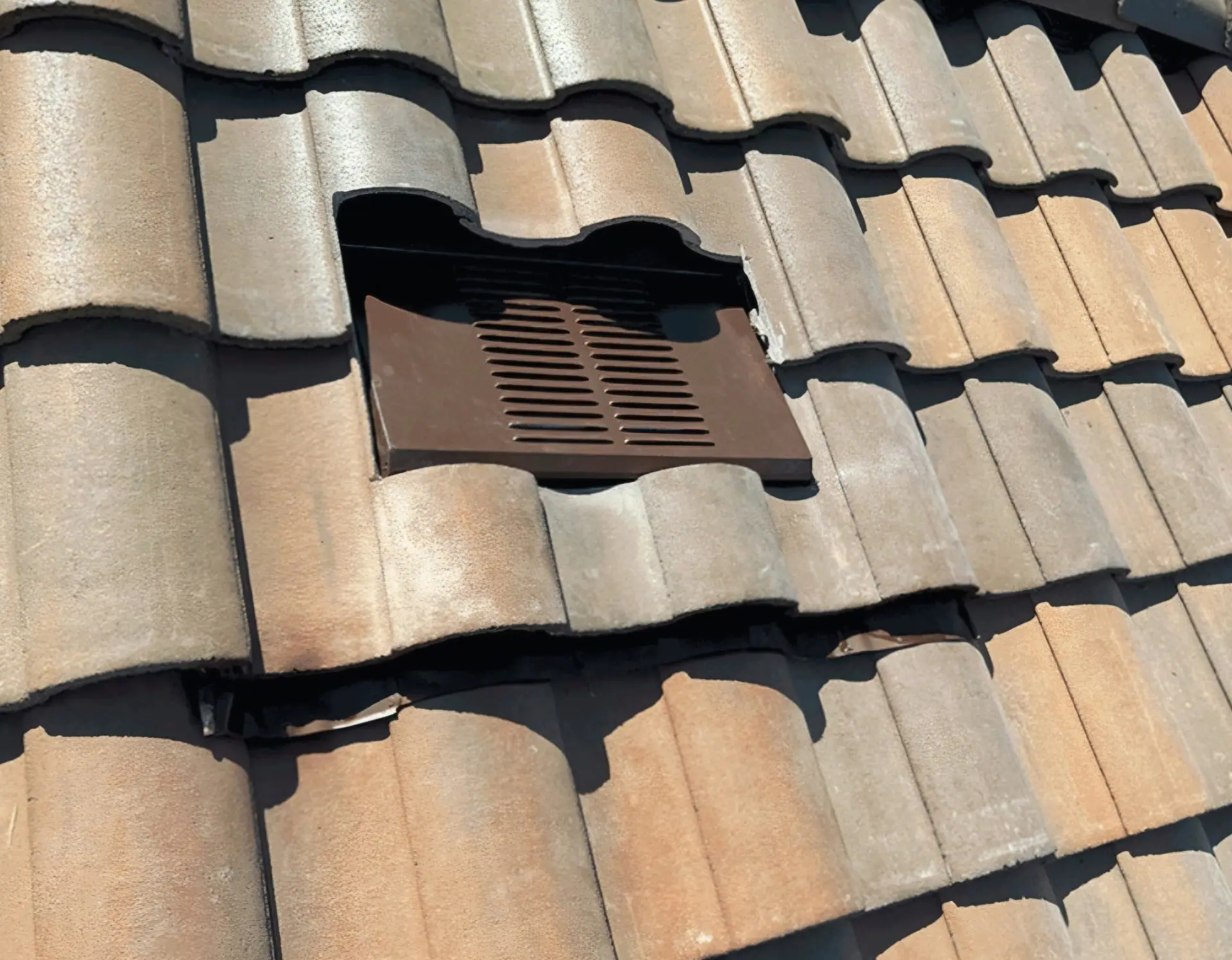

Retrofitting Low Profile Roof Vents with BrandGuard
To retrofit, simply insert one of BrandGuard’s ember-resistant and fire-rated low-profile roof vents into the existing opening. Secure the vent using appropriate screw fasteners and exterior-grade clear caulking rated for a minimum 20-year warranty.
Step 1: Mark and Cut
Center nails between rafters away from the roof’s peak and drive nails up through the sheathing and shingles to mark vent locations. After marking the vent’s location, cut shingles with a utility knife. Make the cutout area 1/2 in. larger than the vent opening (MAX 14 x 7 ½) Please note we offer custom sizes as well.
Step 2: Cut and Seal
Cut a hole in the roof sheathing with a jigsaw or reciprocating saw. Note: Drill a starter hole so you can insert the blade to begin the cut.
Next, slip a pry bar between the shingles and separate the self-sealing adhesive. Then remove any shingle nails that prevent the vent from sliding into place.
Step 3: Place and Install
Slide the vent into the new opening and apply sealant under the front (downhill) flange.
For the finishing touches, use roofing nails with leak protective washers to secure the front (downhill) flange. Add Sealant to secure the shingles to the vents base flange.
Technical Specifications by Size
Compare vent models by size, airflow, material, and compliance ratings to find the right fit for your project.
| Size (L x H) | Model # | Roof Application | NFVA (Airflow) | Spec Sheets |
|---|---|---|---|---|
| 22″ x 2.5″ | LPRV-5000 | Shingles | 69 sq in | Please Contact for Specs. |
| LPRV-5011 | Wide Shingles | 69 sq in | Please Contact for Specs. | |
| LPRV-5021 | Flat Tile and Shake | 69 sq in | Please Contact for Specs. | |
| LPRV-5031 | Flat Tile and Wide Shake | 69 sq in | Please Contact for Specs. | |
| LPRV-5041 | S Tile -DeadSoft Aluminum | 69 sq in | Please Contact for Specs. | |
| 10.5” x 2.5” | LPNV-5051 | Shingles/Metal – Narrow | 45 sq in | Please Contact for Specs. |
| LPNV-5061 | Flat Tile and Shake/Metal – Narrow | 45 sq in | Please Contact for Specs. |
CAD and Revit Drawings
Looking to specify BrandGuard Vents into your next project? Access all of our Revit BIM and CAD file downloads instantly! Please complete the form below to access materials.
More information
Frequently Asked Questions
The essential questions, answered.
How do Brandguard Vents™ work?

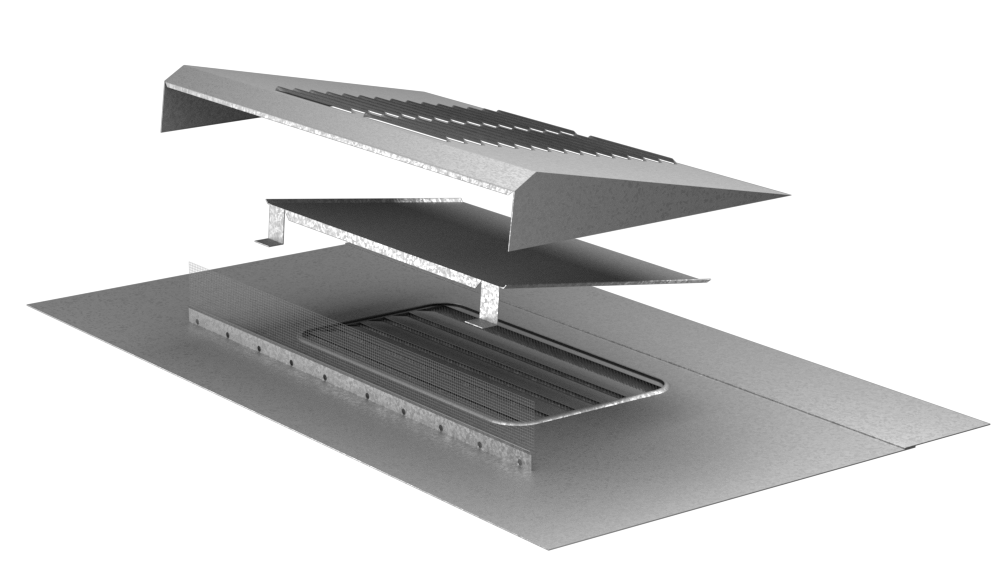

Home hardening is a critical factor to improve the survivability of structures during wildfires. All homes have vulnerable “point of entry” that must be sealed to avoid hot embers and fire from entering the structure. Home ventilation is essential from an energy saving point of view, however in case of a fire nearby, there is a risk of hot embers finding their way into your attic, basement, garage, etc. BrandGuard has patented a unique system to keep embers from entering your house. Our design consists of multiple line of defense:
- A baffle design which allows air to move freely, but traps embers
- BrandGuard propriety intumescent material, which expand only if high heat and extreme flames are reaching the vents
- Non combustible, metal vents which resist heat and flames
How are Brandguard Vents™ different than standard vents?
BrandGuard Vents resists the intrusion of flame and embers into your attic through the building’s vents, thus protecting your home from dangerous flying embers created by wildfires.
Standard Vents do not offer any protection against flying embers and fire.
Why are baffles better for protection?
Baffles have long been used in commercial kitchens as a way to prevent stovetop fires. We have redesigned them to help keep flames, dangerous burning embers, and radiant heat out of your home during a wildfire. Baffles provide immediate protection during a wildfire from the very first second of exposure.
Another reason baffles are better is because they provide protection from driving rain, snow, and rodents. Our vents have passed stringent driving rain tests in Hurricane labs in Florida keep heavy driving rain out at even 140mph! Rodents are unable to chew or squeeze through our vents like they do with regular mesh vents, making them an excellent option for pest control!
What is an intumescent material?
BrandGuard Vents are equipped with a propriety material (intumescent) which expands in case of fire. The thermally activated strip expands up to 30 times its original thickness, sealing off the vent completely. This is an extreme measure to make sure that fire doesn’t penetrate the home.
Are custom vents/products available?
Yes, BrandGuard Vents will work with you and your needs to create a custom fire prevention vent for your project.
How are the vents installed?
BrandGuard Vents are installed like any traditional vent with the same footprint. Our line of retrofit fire Vents can be easily inserted over existing vents without any damage to the structure. They are held in place by applying appropriate screw fasteners. They can also be installed from inside the attic. Please see our installation instructions.
