Soffit and Undereave Vents

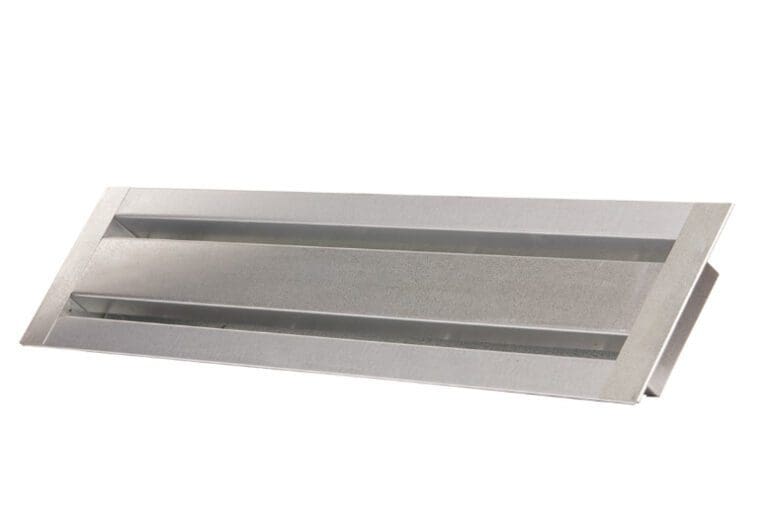

Soffit vents provide critical cool air intake into the attic. Proper ventilation is the most energy efficient way to ensure the entire attic is being cooled. Brandguard Soffit Vents are designed and tested to be used in high severity fire hazard zones. Our soffit vents also allow you to keep the roof deck clear for solar panels. Our product range include Soffit and Undereave vents that resist the intrusion of flames, embers and radiant heat:

  • 2000 series – Made with overlapping baffles and 1/8” mesh
  • 3000 series“Extreme” – These vents have an extra layer of baffles, plus fire rated intumescent strips inside the vent that are activated in case of Extreme Heat

Use these vents in conjunction with our Ridge, Gable, or Dormer vents to get the best air circulation in the attic. All of our products are made with 26ga G90 Galvanized steel with 1/8” mesh and come with a 20 year limited Warranty.

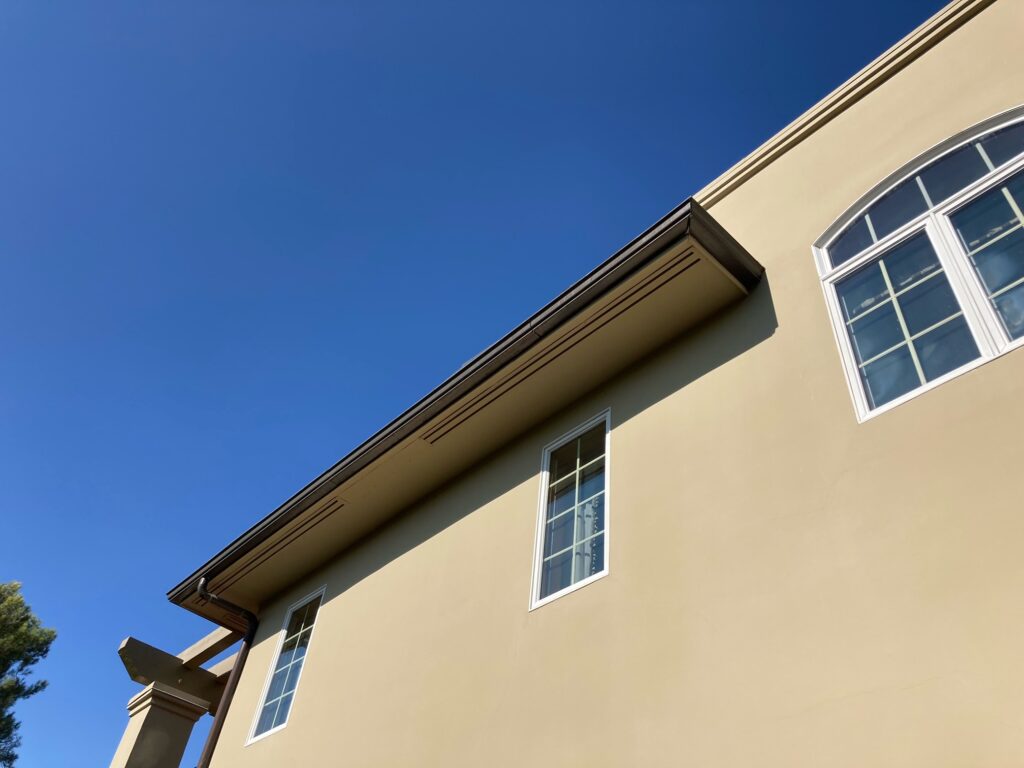

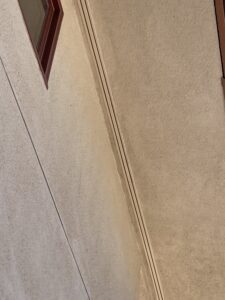

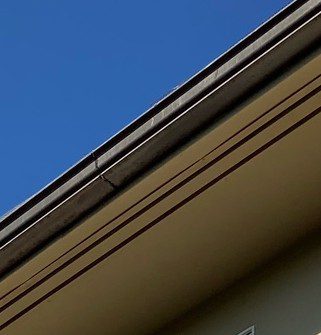

CONTINUOUS SOFFIT VENTS

Available in Flange Front-FF, Flange Back-FB, Plaster ground/J Channel(New construction)-PG, Hardie Board(New construction)-H, Retrofit – R or a Custom Setback.

Size
Model #
Flange
NFVA (Airflow)
Spec Sheet
3”w x 120”l
Standard:CS2011-FF

Flange Front
120 sq in

Download Spec Sheet
Extreme: CS3011-FF
Flange Front
107 sq in
Download Spec Sheet
Standard: CS2011-PG

Stucco/Plaster/J Channel
120 sq in

Download Spec Sheet
Extreme: CS3011-PG
Stucco/Plaster/J Channel
107 sq in
Download Spec Sheet
Standard:CS2011-H

Hardie/Fiber Cement
120 sq in

Download Spec Sheet
Extreme: CS3011-H
Hardie/Fiber Cement
107 sq in
Download Spec Sheet
Standard: CS2011-FB

Flange Back
120 sq in

Download Spec Sheet
Extreme: CS3011-FB
Flange Back
107 sq in
Download Spec Sheet
Standard: CS2011-R

Retrofit
120 sq in

Download Spec Sheet
Extreme: CS3011-R
Retrofit
107 sq in
Download Spec Sheet
5.5”w x 120”l
Standard:CS2021-FF

Flange Front
177 sq in
Download Spec Sheet
Extreme: CS3021-FF
Flange Front
177 sq in
Download Spec Sheet
Standard: CS2021-PG

Stucco/Plaster/J Channel
177 sq in
Download Spec Sheet
Extreme: CS3021-PG
Stucco/Plaster/J Channel
177 sq in
Download Spec Sheet
Standard:CS2021-H

Hardie/Fiber Cement
177 sq in
Download Spec Sheet
Extreme: CS3021-H
Hardie/Fiber Cement
177 sq in
Download Spec Sheet
Standard: CS2021-FB

Flange Back
177 sq in
Download Spec Sheet
Extreme: CS3021-FB
Flange Back
177 sq in
Download Spec Sheet
Standard: CS2021-R

Retrofit
177 sq in
Download Spec Sheet
Extreme: CS3021-R
Retrofit
177 sq in
Download Spec Sheet

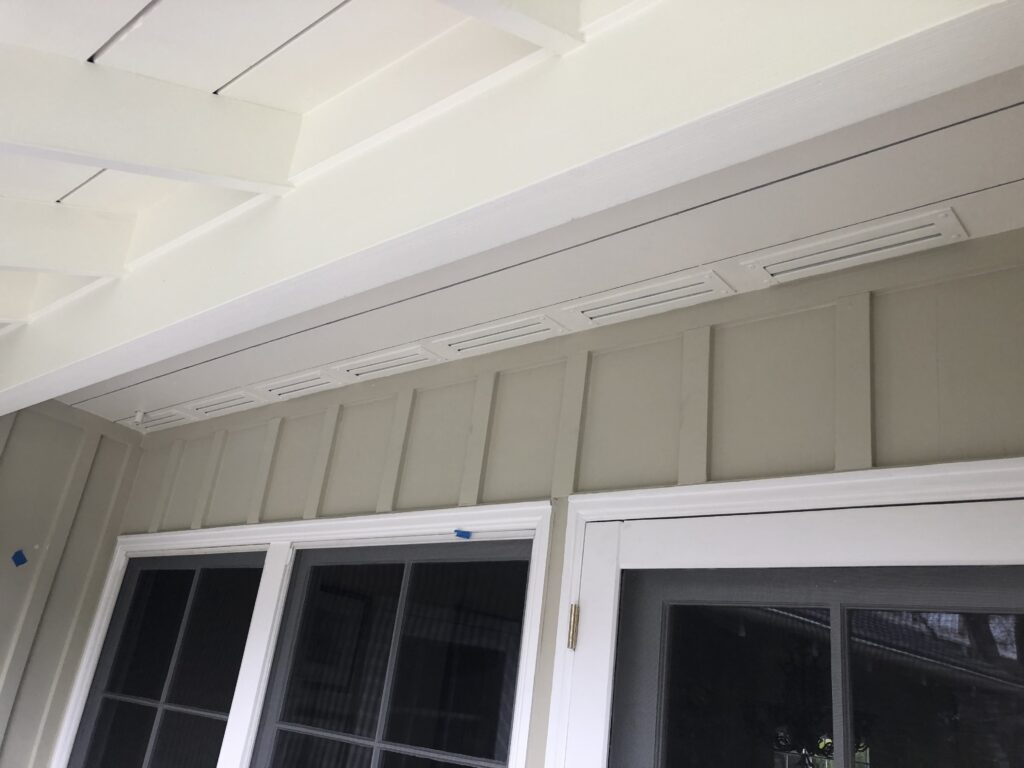

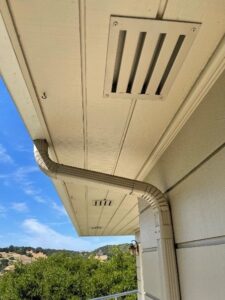

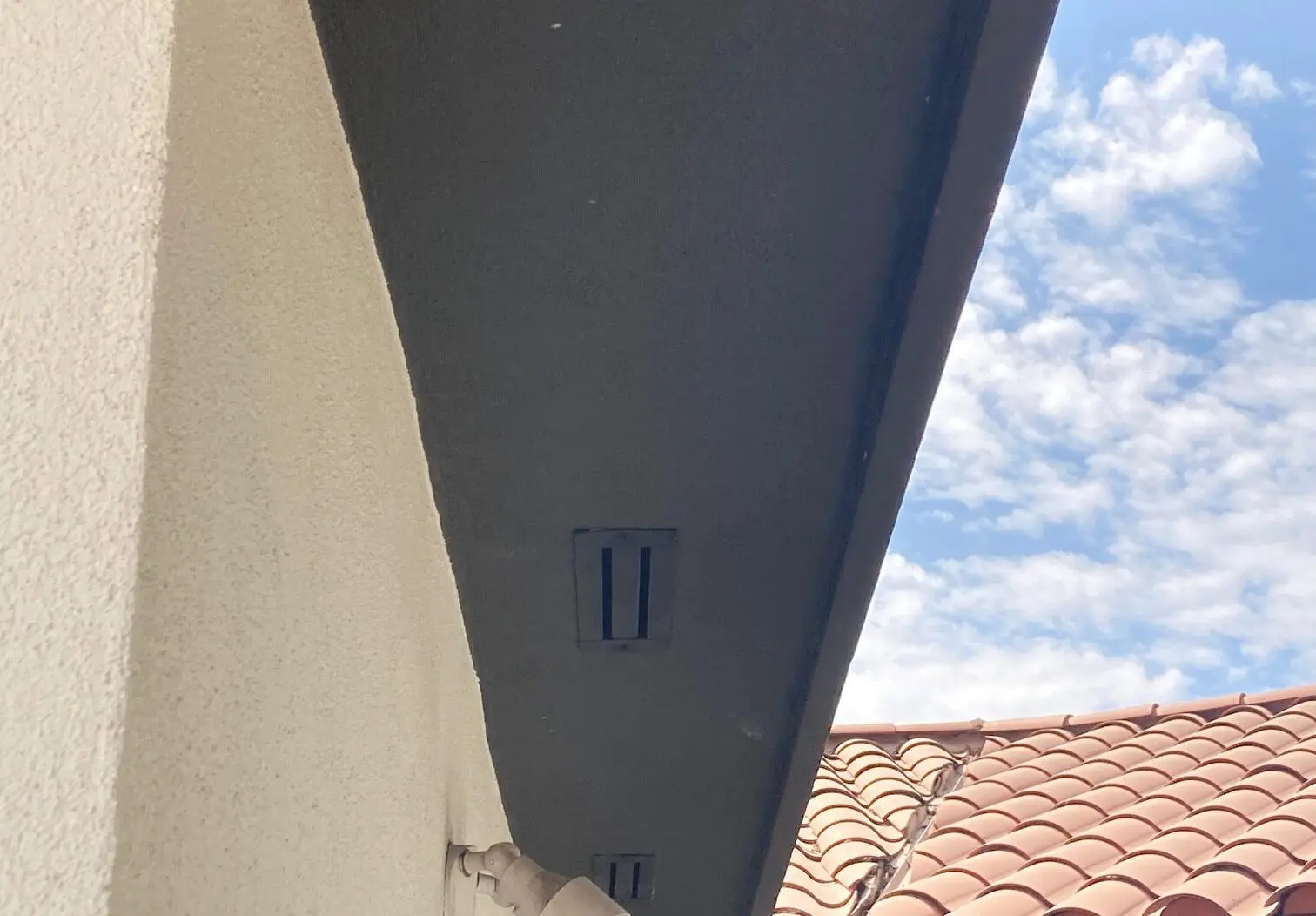

SOFFIT AND UNDEREAVE VENTS

Available in Flange Front, Flange Back, Plaster ground J Channel(New construction), Hardie Board(New construction), Ears Front, Ears Back, Retrofit-R or a Custom Setback. . View Flange Images here to help determine which one is best for you.
Size
Model #
Flange
NFVA (Airflow)
Spec Sheet

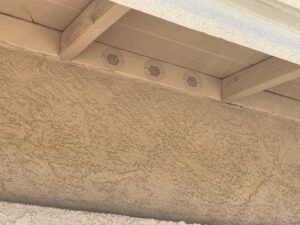

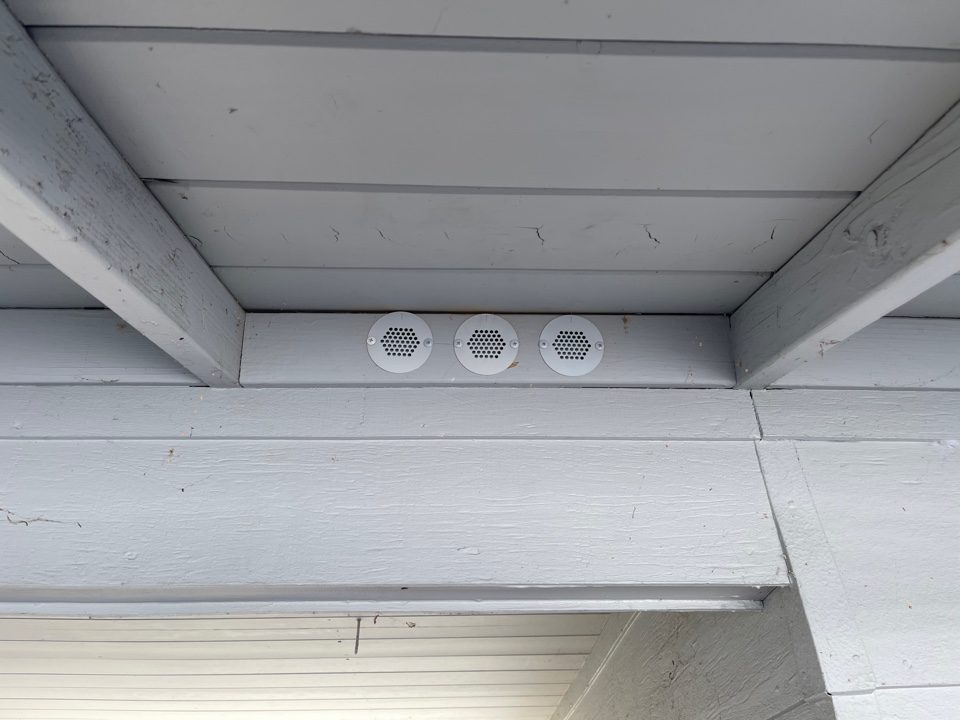

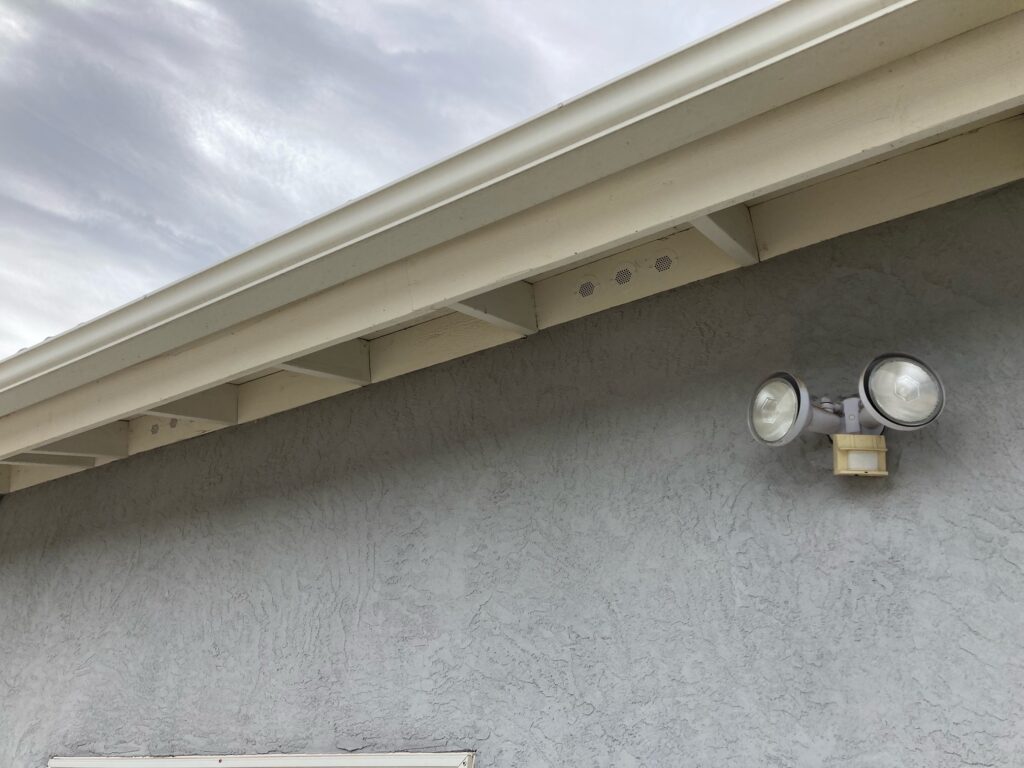

2” Fireplugs
FP2011
Flange Front
1.2 in
Download Spec Sheet
3” Fireplugs
FP2021
Flange Front
2 sq in
Download Spec Sheet
3.5”w x 22”l
Standard:UE2011-FF

Flange Front
20-22 sq in
Download Spec Sheet
Extreme: UE3011-FF
Flange Front
20-22 sq in
Download Spec Sheet
Standard: UE2011-PG

Stucco/Plaster/J Channel
20-22 sq in
Download Spec Sheet
Extreme: UE3011-PG
Stucco/Plaster/J Channel
20-22 sq in
Download Spec Sheet
Standard: UE2011-H

Hardie/Fiber Cement
20-22 sq in
Download Spec Sheet
Extreme: UE3011-H
Hardie/Fiber Cement
20-22 sq in
Download Spec Sheet
Standard: UE2011-EF

Ears Front
20-22 sq in
Download Spec Sheet
Extreme: UE3011-EF
Ears Front
20-22 sq in
Download Spec Sheet
Standard: UE2011-EB

Ears Back
20-22 sq in
Download Spec Sheet
Extreme: UE3011-EB
Ears Back
20-22 sq in
Download Spec Sheet
Standard: UE2011-FB

Flange Back
20-22 sq in
Download Spec Sheet
Extreme: UE3011-FB
Flange Back
20-22 sq in
Download Spec Sheet
Standard: UE2011-R

Retrofit Eave
20-22 sq in
Download Spec Sheet
Extreme: UE3011-R
Retrofit Eave
20-22 sq in
Download Spec Sheet
Standard: UE2011-RS

Retrofit Soffit
20-22 sq in
Download Spec Sheet
Extreme: UE3011-RS
Retrofit Soffit
20-22 sq in
Download Spec Sheet
3.5”w x 14”l
Standard:UE2021-FF

Flange Front
13-14 sq in
Download Spec Sheet
Extreme: UE3021-FF
Flange Front
13-14 sq in
Download Spec Sheet
Standard: UE2021-PG

Stucco/Plaster/J Channel
13-14 sq in
Download Spec Sheet
Extreme: UE3021-PG
Stucco/Plaster/J Channel
13-14 sq in
Download Spec Sheet
Standard: UE2021-H

Hardie/Fiber Cement
13-14 sq in
Download Spec Sheet
Extreme: UE3021-H
Hardie/Fiber Cement
13-14 sq in
Download Spec Sheet
Standard: UE2021-EF

Ears Front
13-14 sq in
Download Spec Sheet
Extreme: UE3021-EF
Ears Front
13-14 sq in
Download Spec Sheet
Standard: UE2021-EB

Ears Back
13-14 sq in
Download Spec Sheet
Extreme: UE3021-EB
Ears Back
13-14 sq in
Download Spec Sheet
Standard: UE2021-FB

Flange Back
13-14 sq in
Download Spec Sheet
Extreme: UE3021-FB
Flange Back
13-14 sq in
Download Spec Sheet
Standard: UE2021-R

Retrofit Eave
13-14 sq in
Download Spec Sheet
Extreme: UE3021-R
Retrofit Eave
13-14 sq in
Download Spec Sheet
Standard: UE2021-RS

Retrofit Soffit
13-14 sq in
Download Spec Sheet
Extreme: UE3021-RS
Retrofit Soffit
13-14 sq in
Download Spec Sheet
5”w x 14”l
Standard:UE2031-FF

Flange Front
24 sq in
Download Spec Sheet
Extreme: UE3031-FF
Flange Front
24 sq in
Download Spec Sheet
Standard: UE2031-PG

Stucco/Plaster/J Channel
24 sq in
Download Spec Sheet
Extreme: UE3031-PG
Stucco/Plaster/J Channel
24 sq in
Download Spec Sheet
Standard: UE2031-H

Hardie/Fiber Cement
24 sq in
Download Spec Sheet
Extreme: UE3031-H
Hardie/Fiber Cement
24 sq in
Download Spec Sheet
Standard: UE2031-EF

Ears Front
24 sq in
Download Spec Sheet
Extreme: UE3031-EF
Ears Front
24 sq in
Download Spec Sheet
Standard: UE2031-EB

Ears Back
24 sq in
Download Spec Sheet
Extreme: UE3031-EB
Ears Back
24 sq in
Download Spec Sheet
Standard: UE2031-FB

Flange Back
24 sq in
Download Spec Sheet
Extreme: UE3031-FB
Flange Back
24 sq in
Download Spec Sheet
Standard: UE2031-R

Retrofit Eave
24 sq in
Download Spec Sheet
Extreme: UE3031-R
Retrofit Eave
24 sq in
Download Spec Sheet
Standard: UE2031-RS

Retrofit Soffit
24 sq in
Download Spec Sheet
Extreme: UE3031-RS
Retrofit Soffit
24 sq in
Download Spec Sheet
3”w x 22”l
Standard:UE2041-FF

Flange Front
20-22 sq in
Download Spec Sheet
Extreme: UE3041-FF
Flange Front
20-22 sq in
Download Spec Sheet
Standard: UE2041-PG

Stucco/Plaster/J Channel
20-22 sq in
Download Spec Sheet
Extreme: UE3041-PG
Stucco/Plaster/J Channel
20-22 sq in
Download Spec Sheet
Standard: UE2041-H

Hardie/Fiber Cement
20-22 sq in
Download Spec Sheet
Extreme: UE3041-H
Hardie/Fiber Cement
20-22 sq in
Download Spec Sheet
Standard: UE2041-EF

Ears Front
20-22 sq in
Download Spec Sheet
Extreme: UE3041-EF
Ears Front
20-22 sq in
Download Spec Sheet
Standard: UE2041-EB

Ears Back
20-22 sq in
Download Spec Sheet
Extreme: UE3041-EB
Ears Back
20-22 sq in
Download Spec Sheet
Standard: UE2041-FB

Flange Back
20-22 sq in
Download Spec Sheet
Extreme: UE3041-FB
Flange Back
20-22 sq in
Download Spec Sheet
Standard: UE2041-R

Retrofit Eave
20-22 sq in
Download Spec Sheet
Extreme: UE3041-R
Retrofit Eave
20-22 sq in
Download Spec Sheet
Standard: UE2041-RS

Retrofit Soffit
20-22 sq in
Download Spec Sheet
Extreme: UE3041-RS
Retrofit Soffit
20-22 sq in
Download Spec Sheet
5.5”w x 22”l
Standard:UE2051-FF

Flange Front
36 sq in
Download Spec Sheet
Extreme: UE3051-FF
Flange Front
36 sq in
Download Spec Sheet
Standard: UE2051-PG

Stucco/Plaster/J Channel
36 sq in
Download Spec Sheet
Extreme: UE3051-PG
Stucco/Plaster/J Channel
36 sq in
Download Spec Sheet
Standard: UE2051-H

Hardie/Fiber Cement
36 sq in
Download Spec Sheet
Extreme: UE3051-H
Hardie/Fiber Cement
36 sq in
Download Spec Sheet
Standard: UE2051-EF

Ears Front
36 sq in
Download Spec Sheet
Extreme: UE3051-EF
Ears Front
36 sq in
Download Spec Sheet
Standard: UE2051-EB
Ears Back
36 sq in
Download Spec Sheet
Extreme: UE3051-EB
Ears Back
36 sq in
Download Spec Sheet
Standard: UE2051-FB
Flange Back
36 sq in
Download Spec Sheet
Extreme: UE3051-FB
Flange Back
36 sq in
Download Spec Sheet
Standard: UE2051-R
Retrofit Eave
36 sq in
Download Spec Sheet
Extreme: UE3051-R
Retrofit Eave
36 sq in
Download Spec Sheet
Standard: UE2051-RS
Retrofit Soffit
36 sq in
Download Spec Sheet
Extreme: UE3051-RS
Retrofit Soffit
36 sq in
Download Spec Sheet
