Foundation Vents

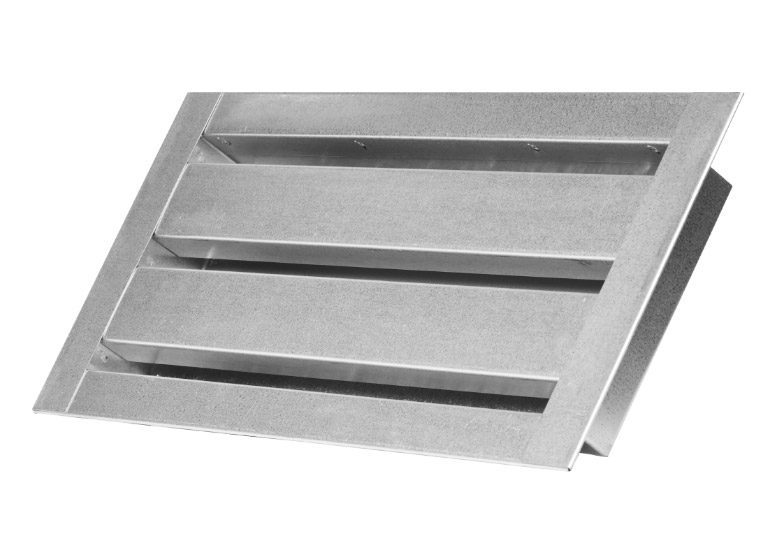

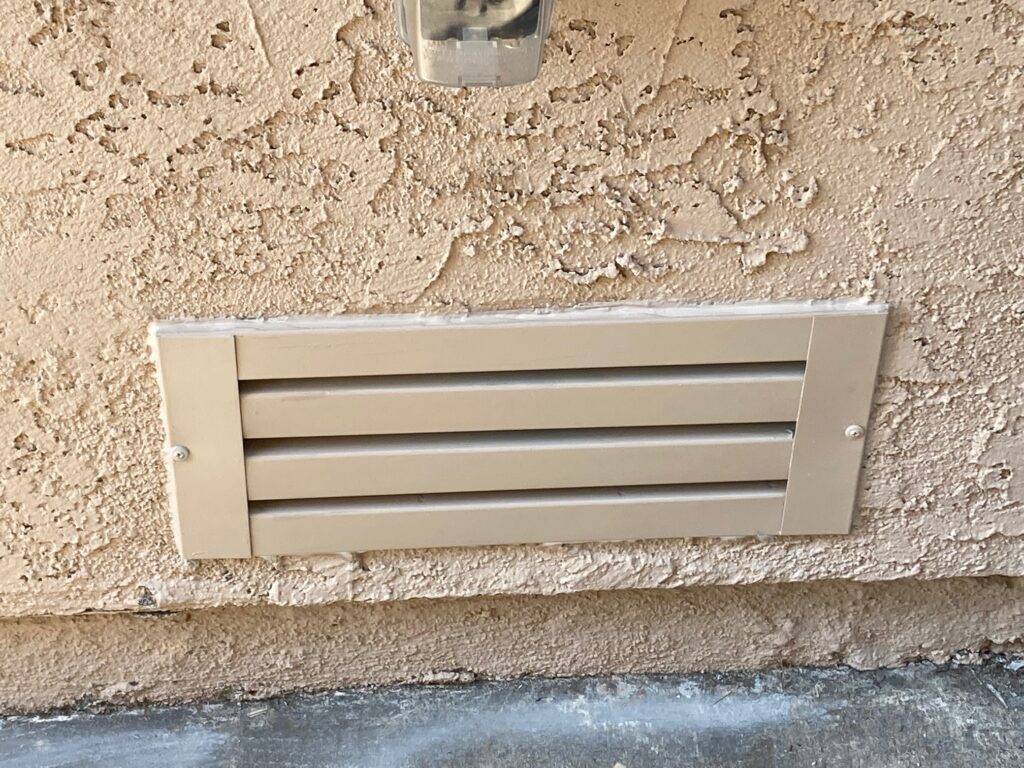

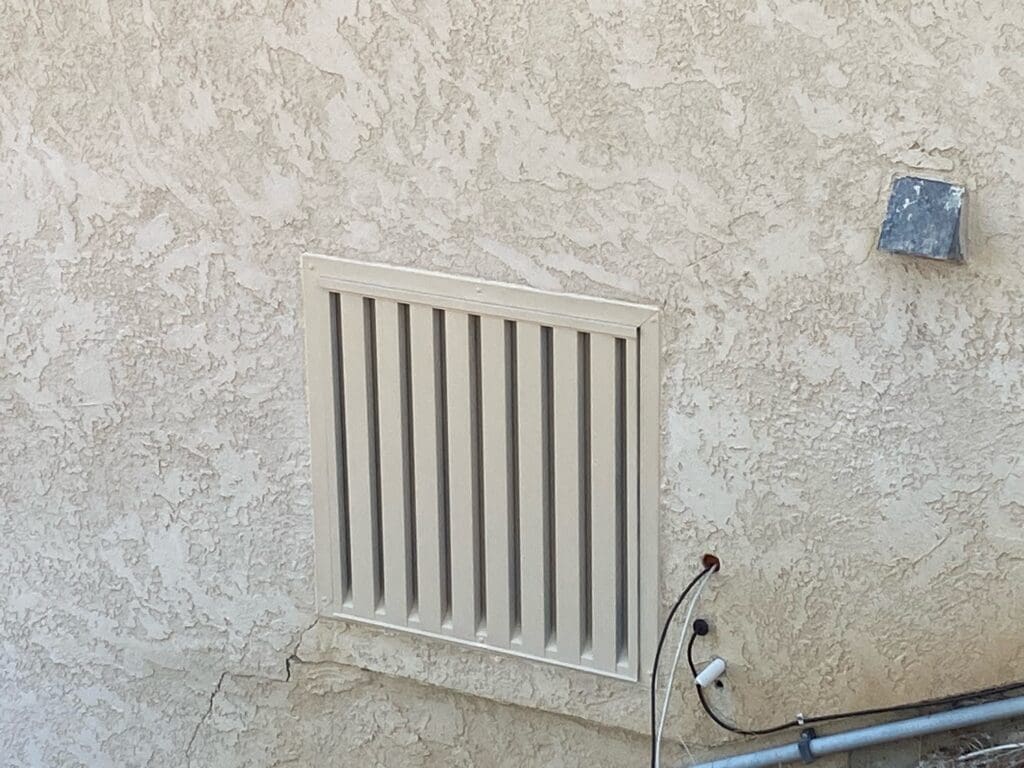

FOUNDATION Vents provide cross circulation in the subfloor of a home. Unfortunately, they also allow highly flammable debris, such as dried leaves, to build up underneath. During wildfires, flames and dangerous burning embers can enter through standard mesh vents- even 1/8” mesh- and start a fire. Brandguard Foundation vents have a unique patented with design with an overlapping baffle front which are tested and approved to be used in high severity fire hazard zones.

Additionally, the overlapping baffles in our Foundation Vents keep out driving rain, snow and pests. Rodents, such as rats and mice, can easily chew through standard mesh vents, but are unable to penetrate our study thick metal baffles.

All of our products are made with 26ga G90 Galvanized steel and come with a 20 year limited Warranty. Contact us for a free estimate.

Available in Flange Front-FF, Flange Back-FB, Plaster ground J Channel-PG, Hardie Board-H, Retrofit-R or a Custom Setback.
Size
Model #
Flange
NFVA (Airflow)
Spec Sheet
6” X 14”
FV2011-FF
Flange Front
23.4 sq in
Download Spec Sheet
FV2011-PG
Stucco/Plaster
23.4 sq in
Download Spec Sheet
FV2011-FB
Flange Back
23.4 sq in
Download Spec Sheet
FV2011-R
Retrofit
23.4 sq in
Download Spec Sheet
8” x 16”
FV2021-FF
Flange Front
38 sq in
Download Spec Sheet
FV2021-PG
Stucco/Plaster
38 sq in
Download Spec Sheet
FV2021-FB
Flange Back
38 sq in
Download Spec Sheet
FV2021-R
Retrofit
38 sq in
Download Spec Sheet
